2021 China New Design Hospital Patient Trolley - Manual three function hospital bed – Webian
2021 China New Design Hospital Patient Trolley - Manual three function hospital bed – Webian Detail:
|
Headboard/Footboard |
Detachable ABS anti-collision bed headboard |
|
Gardrails |
ABS damping lifting guardrail with angle display. |
|
Bed surface |
High quality large steel plate punching bed frame L1950mm x W900mm |
|
Brake system |
Central brake central control casters, |
|
Cranks |
ABS fold hidden cranks |
|
Back lifting angle |
0-75° |
|
Leg lifting angle |
0-45° |
|
Max load weight |
≤250kgs |
|
Full Length |
2200mm |
|
Full width |
1040mm |
|
Height of the bed surface |
440mm ~ 680mm |
|
Options |
Mattress, IV pole, Drainage bag hook, bedside locker, overbed table |
|
HS CODE |
940290 |
It is suitable for patient nursing and recuperation, and facilitate the daily care to patient.
1. The use of hospital beds should be monitored by professionals.
2. People who are taller than 2m and heavier than 250kg cannot use this bed.
3. This product should only be used by one person. Do not use two or more people at the same time.
4. The product has three functions: back lifting, leg lifting and overall lifting.
1. Bed headboard and footboard
The inner side of the headboard and the footboard is equipped with hanging inlay. The corresponding two metal mounting columns of the headboard and the footboard shall be pressed with vertical downward force to embed the metal mounting columns into the inverted embedding groove, and locked with the hook of headboard and footboard.
2. Guardrails
Install the guardrail, fix the screws through the holes of guardrails and bed frame, fasten with nuts.
This hospital bed is equipped with three cranks, the functions are: back lifting, overall lifting, leg lifting.
1. Back rest lifting: Turn the crank clockwise, the back panel lift
Turn the crank counterclockwise, the back panel down.
2. Overall lifting: Turn the crank clockwise, the overall lift
Turn the crank counterclockwise, the overall down.
3. Leg rest lifting: Turn the crank clockwise, the leg panel lift
Turn the crank counterclockwise, the leg panel down.
1. Check that the headboard and footboard were fasten tightly with bed frame.
2. The safe working load is 120kg, the max load weight is 250kgs.
3. After installing the hospital bed, place it on the ground and check whether the bed body shakes.
4. The drive link should be lubricated regularly.
5. Check the casters regularly. If they are not tight, please fasten them again.
6. When operating the functions of back lifting, leg lifting and overall lifting, don’t place the limb between the gap of bed frame and the bed panel or the guardrail, to avoid limb damage.
The packaged products can be transported by general ways of transport. During the transportation, please pay attention to preventing sunshine, rain and snow. Avoid transportation with toxic, harmful or corrosive substances.
Packaged products should be placed in a dry, well-ventilated room without corrosive materials or heat source.

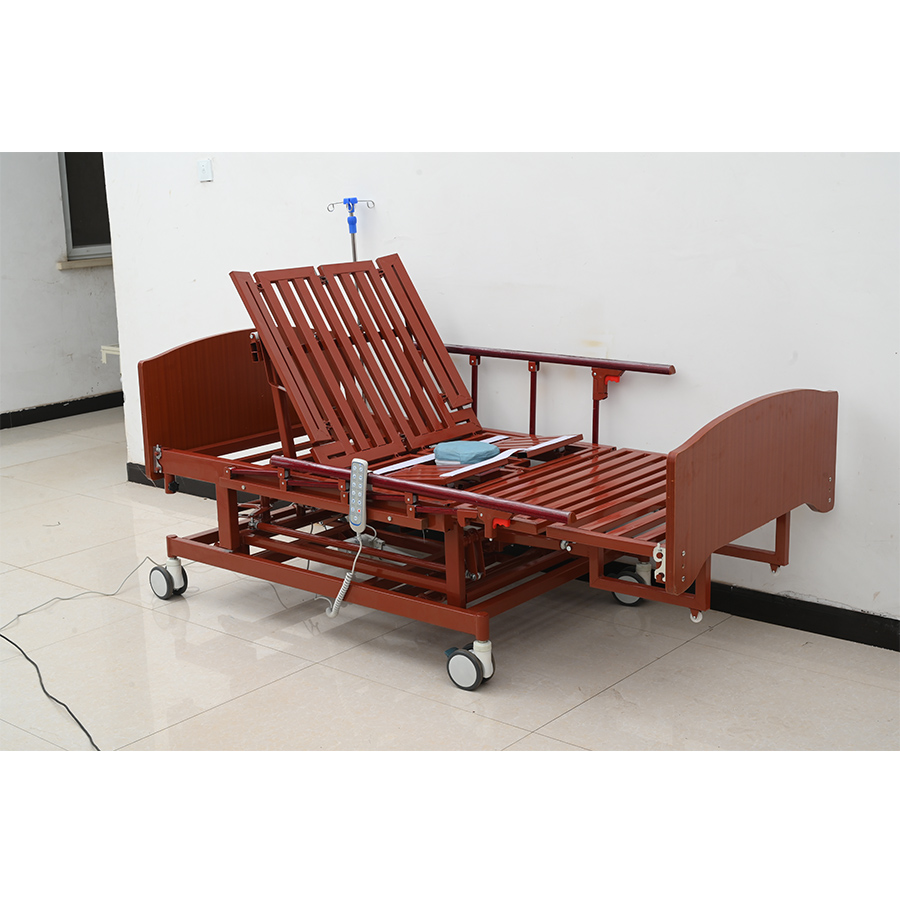

Product detail pictures:
