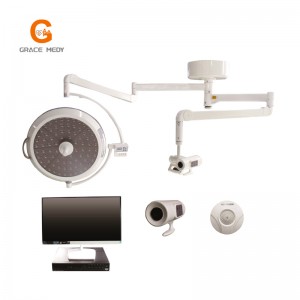

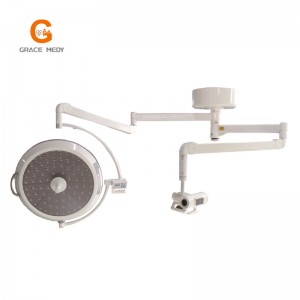

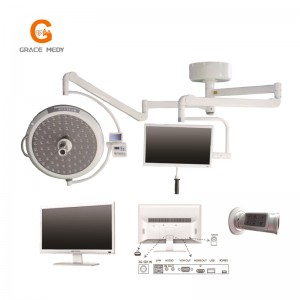

LED700 operating surgical light with camera
|
Main technical parameters of LED series shadowless light camera
|
|||
|
camera
|
parameter settings
|
||
|
sensor type
|
1/2.8″ Progressive Scan CMoS
|
focus mode
|
semi-automatic/automatic/manual/
|
|
scan system
|
line-by-line scan
|
exposure mode
|
Auto Exposure/Aperture Priority/Shutter Priority/Manual Exposure
|
|
signal system
|
PAL/NSTC
|
electronic shutter
|
1/1 second – 1/30,000 second
|
|
video output
|
SDI output, network output
|
white balance
|
Auto1/Auto2/Indoor/Outdoor/Manual/Sodium Lamp/Fluorescent Lamp
|
|
Resolution
|
50HZ-50fps(1920X1080)60HZ-60fps(1920×1080)
50HZ-25fps(1920×1080)60HZ-30fps(1920X1080) |
gain
|
16 levels adjustable
|
|
Minimum illumination
|
Color: 0.05Lux@(F1.6, AGC ON)
|
wide dynamic
|
Off/On, 15 levels adjustable
|
|
signal to noise ratio
|
Greater than 52dB
|
digital noise reduction
|
3D
|
|
lens
|
Lens initialization
|
built-in
|
|
|
focal length
|
4.7-47mm, 10x optical zoom
|
Image quality adjustment
|
Brightness, contrast, sharpness, saturation can be adjusted
|
|
Light value
|
F1.6-F3.0
|
digital zoom
|
10
|
|
Horizontal field of view
|
58.6-6.4 degrees (Wide-Telephoto)
|
General Specifications
|
|
|
close-up
|
120mm-800mm (wide-angle-telephoto)
|
power supply
|
DC12V±25%
|
|
Interface function
|
Working temperature and humidity
|
-10℃-60℃, less than 90%RH
|
|
|
External Interface
|
SDI, RS485, Power UART
|
Power consumption
|
5w
|
|
External communication
|
Pelco P, Pelco D, VISCA
|
size
|
43.5*45.4*68.8mm
|
|
weight
|
190g
|
||
Operating Light Specifications
|
item
|
value
|
|
Place of Origin
|
China
|
|
Hebei
|
|
|
Brand Name
|
Grace medy
|
|
Model Number
|
GM-LED700
|
|
Power Source
|
Electric
|
|
Warranty
|
1 years
|
|
After-sale Service
|
Online technical support
|
|
Material
|
Aviation aluminum
|
|
Shelf Life
|
60000 hours
|
|
Quality Certification
|
CE
|
|
Instrument classification
|
Class II
|
|
Safety standard
|
ISO13485
|
|
LED bulb quantity
|
80
|
|
Color temperature (K)
|
3000k-6700k adjustable
|
|
voltage
|
100-220AV/50Hz
|
|
Spot diameter (mm)
|
≥180/170mm
|
|
lamp beads
|
1W /3V
|
|
Lamp bead average life
|
≥60000h
|
|
Irradiance (W/m’)
|
≤550
|
|
Input power (VA)
|
220
|
|
Installation method
|
Ceiling or mobile
|
|
color reproduction index
|
≥95
|
Company Profile
We are a professional manufacturer and designer of hospital furnitures and relate medical products. We established our first factory in 2009. Starting from the production of simple hospital beds, and in order to better serve our customers, we have established a professional R&D team. focusing on electric ICU beds and home care beds. Our team continuously introduces new styles every year. These new styles are the most attractive to customers every time in the exhibition. Moreover, our R&D team give professional suggestion and improvement solution in the customized products, the customers benefit from these solution and avoids market risks, so they have established a long-term cooperation with us. We also can match the design according to your target price or need, which is more conducive to you to develop your market. After 12 years of development, our comprehensive and intelligent production line allows us to provide you with modern medical and nursing combined products. We have the CE certificate and passed ISO13485 quality management system certification. ISO13485 is very persuasive in medical goods production field. This certificate is a passport to enter the international market. And these certificates are recognition of our quality. We also provide corresponding certificates and embassy certifications according to your requirements, to make you more competitive in the market.
FAQ
Q: Are you a factory?
A: Yes, we are a professional manufacturer and designer of hospital beds and related medical products. We have our own R&D team.
A: Yes, we are a professional manufacturer and designer of hospital beds and related medical products. We have our own R&D team.
Q: How do you guarantee the quality?
A: In order to ensure product quality, our factory has a complete quality control system, in line with ISO13485:
1.IQC: (Incoming Quality Control) material is the basis of quality.
2.PQC: (Process Quality Control) PQC is a designated inspection or acceptance.
3.FQC: (Final Quality Control) Products should be tested before completion.
4.OQC: (Factory Quality Control) It is also our pre-shipment inspection system.Q: Do you accept customized products?
A: We accept customization. The R&D team can quickly draw detailed design drawings, cooperate with production and produce samples,and propose improvement plans many times in the process to benefit customers and avoid market risks.Q: What additional sales services do you offer?
A: We provide you with a full range of sales plans, sales posters, sales brochures according to your needs. If you have any
questions, you can communicate with us in time.
A: In order to ensure product quality, our factory has a complete quality control system, in line with ISO13485:
1.IQC: (Incoming Quality Control) material is the basis of quality.
2.PQC: (Process Quality Control) PQC is a designated inspection or acceptance.
3.FQC: (Final Quality Control) Products should be tested before completion.
4.OQC: (Factory Quality Control) It is also our pre-shipment inspection system.Q: Do you accept customized products?
A: We accept customization. The R&D team can quickly draw detailed design drawings, cooperate with production and produce samples,and propose improvement plans many times in the process to benefit customers and avoid market risks.Q: What additional sales services do you offer?
A: We provide you with a full range of sales plans, sales posters, sales brochures according to your needs. If you have any
questions, you can communicate with us in time.
Q: What is your warranty policy after-sales service?
A: Our guarantee is one-year warranty, five-year maintenance, and ten-year spare parts supply. In addition, we provide you with a full range of after-sales services from purchase to use. If there is a problem, we will reply within 24 hours and propose a solution within 48 hours.
