Rotating nursing bed

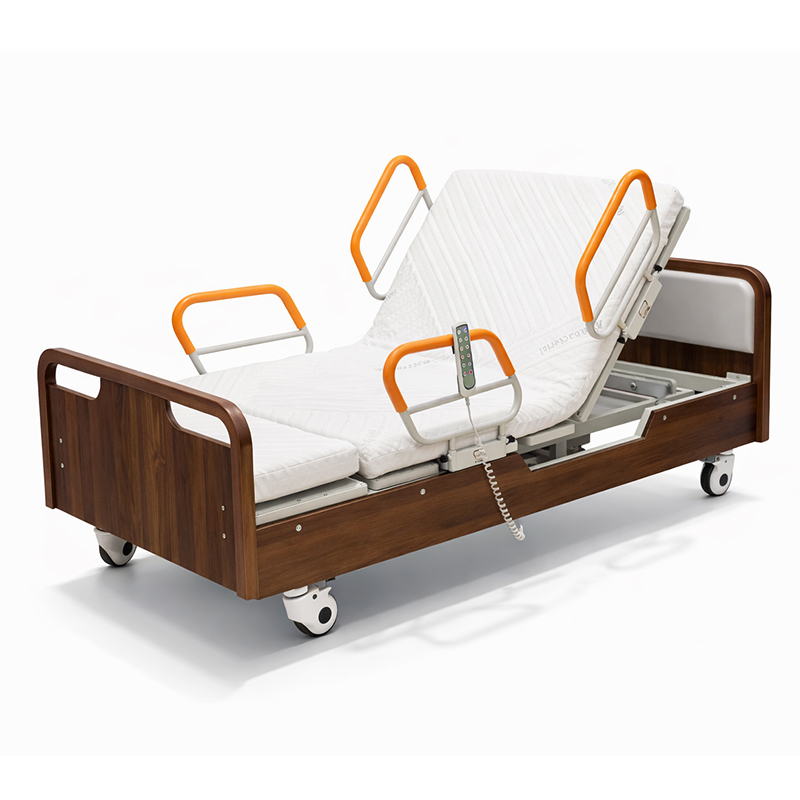

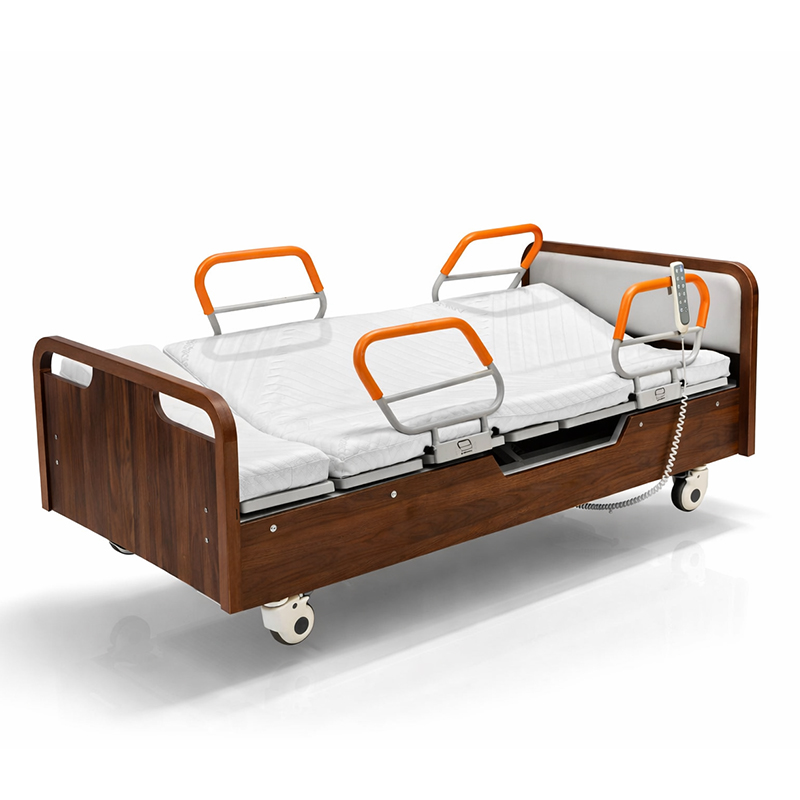

Our Electric Turning and Rotating Nursing Bed is engineered for superior performance in both home care and institutional settings. It combines robust construction, advanced functionality, and patient-centered design. This bed offers reliable, comfortable, and hygienic care over the long term.
The bed’s core structure is built for strength and stability. The bed frame uses high-quality rectangular carbon steel tubing. This tubing measures 30*60*1.2mm. It is welded into a solid frame. This design gives the bed a high load-bearing capacity. It effectively resists bending or deformation. The maximum safe load capacity is 200kg.
The headboard, footboard, and side rails feature solid wood frames. Their center panels are made from durable solid wood particle board. All surfaces are treated with a hard baking paint finish. This finish is smooth and resistant. It is sturdy yet lightweight. It is also very easy to clean. The painted surface is environmentally friendly and odorless. The paint will not peel or flake, even after years of use. The headboard and footboard attach to the main frame with strong screws. This creates a rigid connection. It prevents any shaking or wobbling during use.
The bed surface is made from a single piece of carbon steel. It is formed through an integrated stamping process. A reinforcing rib, measuring 25*25mm, is welded around its entire edge. This adds significant strength to the platform. It ensures a firm and supportive base for the mattress.

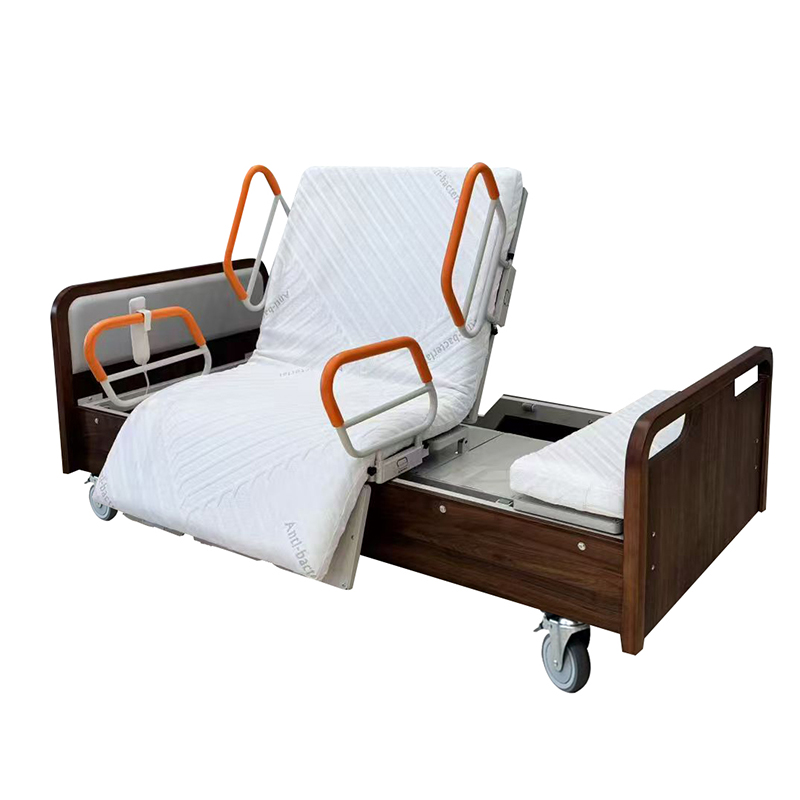

Movement is powered by four separate motors. Each motor controls a key function. These are the backrest, leg rest, overall tilting, and rotating functions. We use domestically renowned medical-grade silent motors. They operate very smoothly and quietly. Their operation is reliable and uninterrupted. A handheld controller manages all movements. This controller is simple and convenient. It has a built-in backlight. This allows for easy operation in dark rooms or at night.
Safety and comfort are prioritized. The side rails are made from 22mm thick high-quality carbon steel tubing. Each rail is bent and welded into one solid piece. They feature a rhombus design pattern. This design increases the protective area. Foam padding is added to the top rail. This provides a comfortable and secure grip for the user.
The bed moves easily on five-inch casters. These are high-grade silent wheels. They contain fully enclosed self-lubricating bearings. This design extends their service life. It means no extra lubrication or maintenance is needed. The wheels are sealed to prevent hair or dirt from getting stuck inside. Each caster has its own independent brake. The wheel surface is made from TPR wear-resistant material. This material is very durable. It allows for light, smooth, and quiet movement across floors.
The entire bed undergoes a rigorous two-step finishing process. It receives double phosphating treatment followed by electrostatic powder coating. The final paint is a special antibacterial coating. This coating inhibits the growth of bacteria. It is also resistant to acids, alkalis, and fading. This greatly extends the overall life of the bed.
For patient comfort, we include a high-quality mattress. It combines a 2cm layer of gel foam with a 6cm layer of high-density foam. This provides excellent pressure relief and support. The mattress cover is fully removable and machine washable. This makes hygiene management simple.
This electric bed is fully functional. It features warm, inviting colors. Its style is elegant and dignified. It is designed to meet the highest demands of modern care. It provides a perfect blend of strength, safety, comfort, and ease of use.
