Electric five function nursing bed

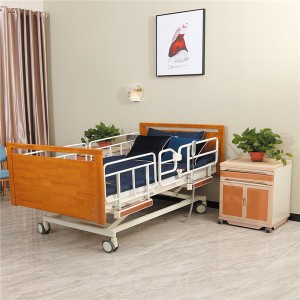

This bed is a Electric five-function nursing bed. The home style is suitable for home design hospital and nursing homes. It can make the patient feel at home and relaxed.

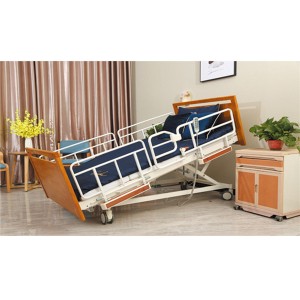

This bed adopts vertical lifting, and there is no displacement during the lifting process, which reduces the space occupied. Decompression desigh on the back reduces the squeeze between the bed and the back during the back lifting.

And the full-length guardrails with a side opening door reduces the risk of patients falling off the bed.

Click for more detail

Product Detail

Product Tags

Headboard/Footboard	Solid wood(oak) head and foot, home style
Gardrails	Four piece plug-in guardrail with plug locking structure with door design
Bed surface	net design, more breathable
Brake system	125mm silent twin-side casters with brake,
Functions	backrest, legrest, height adjustable, trendelenburg and reverse trendelenburg
Motors	L&K brand or Local famous brand
Back lifting angle	0-70°
Leg lifting angle	0-30°
Trendelenburg and reverse trendelenburg	0-12°
Height adjustable	340-640mm
Load capacity	≤250kgs
Full Length	2090mm
Full width	1000mm
Options	Mattress, IV pole, Drainage bag hook, Battery
HS CODE	940290

Products Name

Electric three function hospital bed

Technical data

Length: 2090mm (bed frame 1950mm)，Width: 960mm (bed frame 900mm)
Height: 340mm to 640mm (bed surface to floor, exclude mattress thickness)
Back rest lifting angle 0-75°
Leg rest lifting angle 0-45°

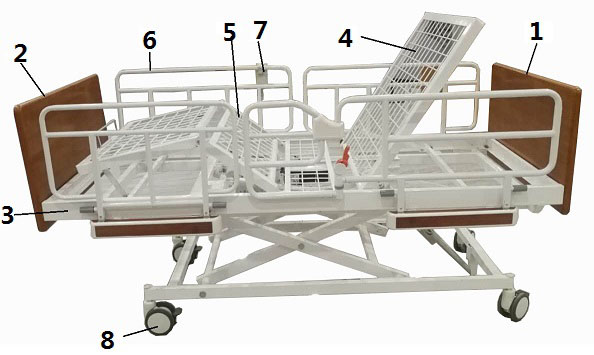

Structural composition: (as picture)

1. Bed Headboard
2. Bed Footboard
3. Bed-frame
4. Back panel
5. Leg panel
6. Guardrails
7. Control handle
8. Casters

Application

It is suitable for patient nursing and recuperation.

Installation

1. Casters of bed
Put the bed frame bottom up, brake the casters and then install the casters into the legs, then put the bed on the floor.

2. Bed headboard and footboard
Install the headboard and footboard, fix the screws through the holes of headboard/footboard and bed frame, fasten with nuts.

3. Guardrails
Insert the guardrail in the side base, then fasten the screws on both sides of guardrails.

How to use

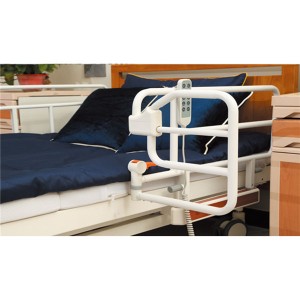

Control Handle

Press button ▲, the bed backrest raise, the max angle 75°±5°
Press button ▼, the bed backrest drop untill resume flat

Press button ▲, the overall raise, the max height of bed surface is 640cm
Press button ▼, the overall drop, the lowest height of bed surface is 340cm

Press button ▲, the bed legrest raise, the max angle 45°±5°
Press button ▼, the bed legrest drop untill resume flat

2. The door of guardrails: open the red button of the door, the door can turn freely, close the red button, the door can not move.
3. Remove the guardrails: Loosen the screws on both sides of the guardrail, then remove the guardrail.

Safe use instructions

1. Make sure the power cord is firmly connected. Ensure reliable connection of controllers.
2. The person cannot stand to jump on the bed. When the patient sits on the back board or stand on the bed, pls don't move the bed.
3. When using the guardrails, lock firmly.
4. In unattended situations, the bed should be kept at the lowest height to reduce the risk of injury if the patient falls from the bed while in or out of bed.
5. Casters should be effectively locked
6. If the need to move the bed, firstly, removed the power plug, winded the power controller wire, and locked the guardrails and the door, to avoid the patient in the process of moving fall and injury. Then release the casters brake, at least two people operate the moving, so as not to lose control of the direction in the moving process, resulting in damage to the structural parts, and endanger the health of the patients.
7. Horizontal moving is not allowed to avoid damage to the guardrail.
8. Don't move the bed on uneven road, in case of caster damage.
9. Do not press more than two buttons at the same time to operate the electric medical bed, so as not to endanger the safety of patients
10. The working load is 120kg, the max load weight is 250kgs.

Maintenance

1. Check that the headboard and footboard were fasten tightly with bed frame.
2. Check the casters regularly. If they are not tight, please fasten them again.
3. Be sure to turn off the power supply during cleaning, disinfection, and maintenance.
4. Contact with water will lead to power plug failure, or even electric shock, please use a dry and soft cloth to wipe
5. Exposed metal parts will rust when exposed to water. Wipe with a dry and soft cloth.
6. Please wipe the plastic, mattress and other coating parts with a dry and soft cloth
7. Besmirch and oily be soiled, use the wring dry cloth that dip in diluent of neutral detergent to wipe.
8. Do not use banana oil, gasoline, kerosene and other volatile solvents and abrasive wax, sponge, brush etc.
9. In case of machine failure, please immediately cut off the power supply, and contact the dealer or manufacturer.
10. Non-professional maintenance personnel do not repair, modify, to avoid danger.

Transportation

The packaged products can be transported by general ways of transport. During the transportation, please pay attention to preventing sunshine, rain and snow. Avoid transportation with toxic, harmful or corrosive substances.
