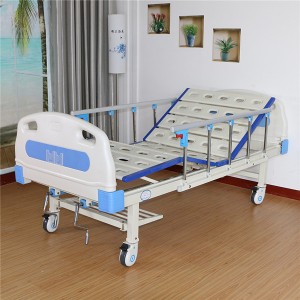

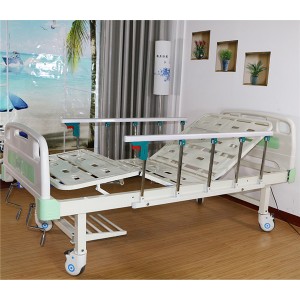

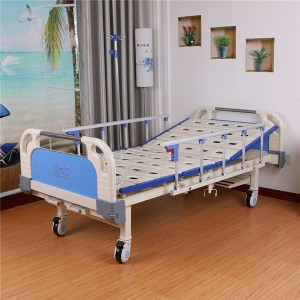

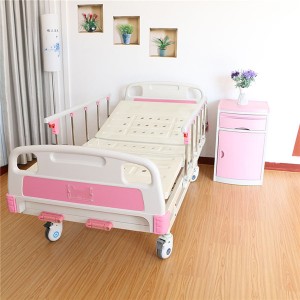

Two function hospital bed double cranks hospital bed

Two function hospital bed double cranks hospital bed

The two-function medical bed have backrest and legrest function. It helps to relieve bedsores caused by local pressure and the patient’s blood circulation. and the multiple positions make the patient feel more comfortable. All parts can be changed according to your requirement. We use the ABS cranks or stainless steel cranks. They can be folded and hidden to avoid bruising the nursing staff and visitors.


Product Detail

Product Tags

Manual two function hospital bed

Headboard/Footboard

Detachable ABS bed headboard

Gardrails

Aluminum alloy and stainless steel guardrail

Bed surface

High quality large steel plate punching bed frame L1950mm x W900mm

Brake system

125mm silent with brake casters,

Back lifting angle

0-75°

Leg lifting angle

0-45°

Max load weight

≤250kgs

Full Length

2090mm

Full width

960mm

Options

Mattress, IV pole, Drainage bag hook, dinning table

HS CODE

940290

Structural composition: (as picture)

1. Bed Headboard
2. Bed Footboard
3. Bed-frame
4. Back panel
5. Welded bed panel
6. Leg panel
7. Foot panel
8. Crank for back lifting
9. Crank for leg lifting
10. Cranking mechanism
11. Toilet hole
12. Crank for toilet hole
13. Guardrails
14. Casters

two

Application

It is suitable for patient nursing and recuperation.

Installation

1. Bed headboard and footboard
Insert the fixed screw of bed frame into the groove of headboard and footboard (as shown in figure 1).
2. IV stand: insert the IV stand in the reserved hole.
3. ABS dinning table: Put the table on the guardrails and clamp it tightly.
Aluminum or stainless steel guardrails:Fixed the guardrail with screws through the holes of guardrail and bed frame.

one f

How to use

1. Back rest lifting: Turn the crank clockwise, the back panel lift
Turn the crank counterclockwise, the back panel down.
2. Leg rest lifting: Turn the crank clockwise, the leg panel lift
Turn the crank counterclockwise, the leg panel down.
3. Toilet hole: Pull out the plug, the toilet hole is opened; push the toilet door, then insert the plug, the toilet hole is closed.
Toilet hole with crank device, turn the crank clockwise to open the toilet hole, turn the crank counterclockwise to close the toilet hole

Attention

1. Check that the headboard and footboard were fasten tightly with bed frame.
2. The safe working load is 120kg, the max load weight is 250kgs.
3. After installing the hospital bed, place it on the ground and check whether the bed body shakes.
4. The drive link should be lubricated regularly.
5. Check the casters regularly. If they are not tight, please fasten them again.

Transportation

The packaged products can be transported by general ways of transport. During the transportation, please pay attention to preventing sunshine, rain and snow.  Avoid transportation with toxic, harmful or corrosive substances.

Store

Packaged products should be placed in a dry, well-ventilated room without corrosive materials or heat source.
