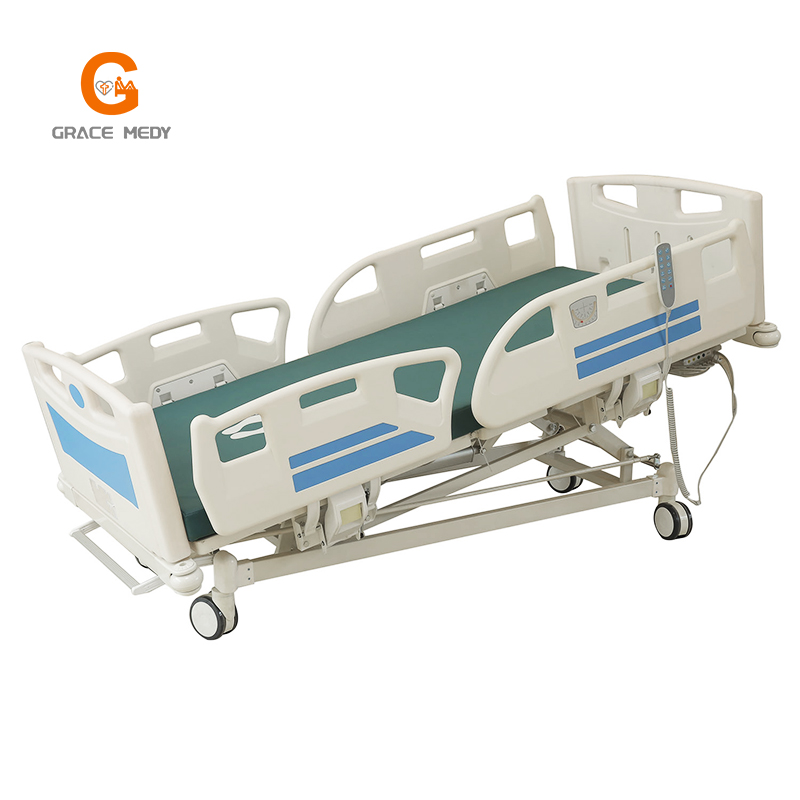

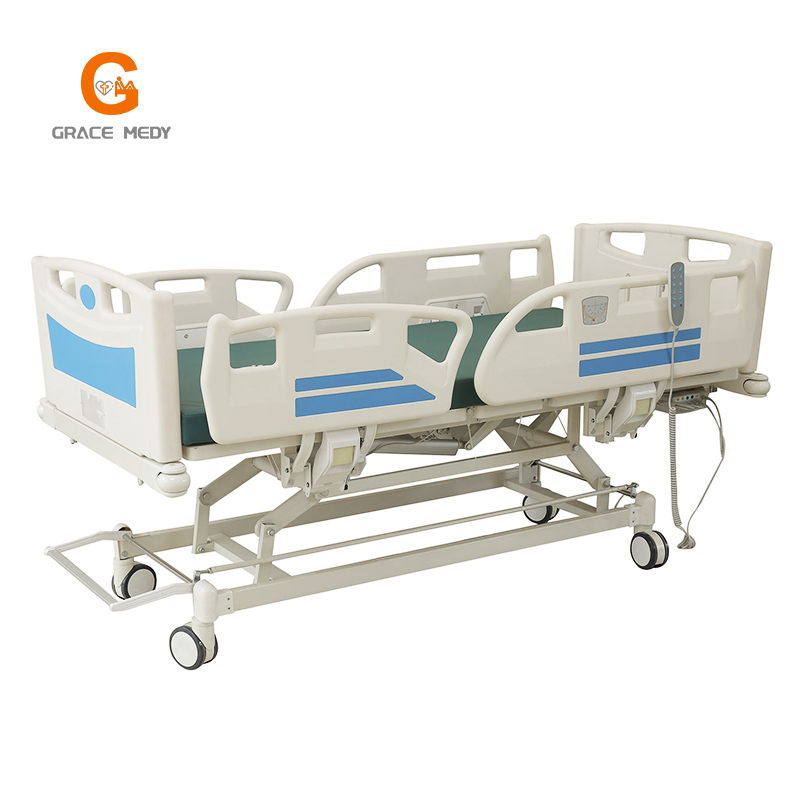

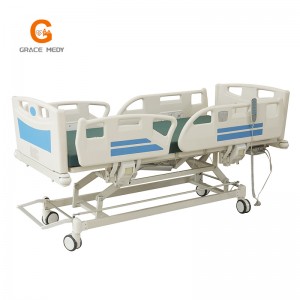

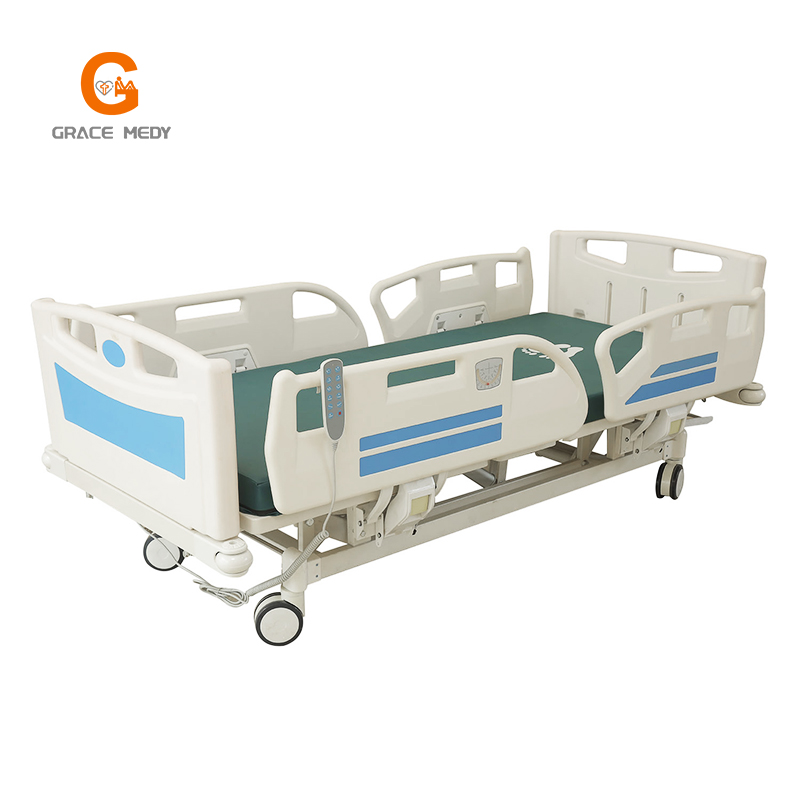

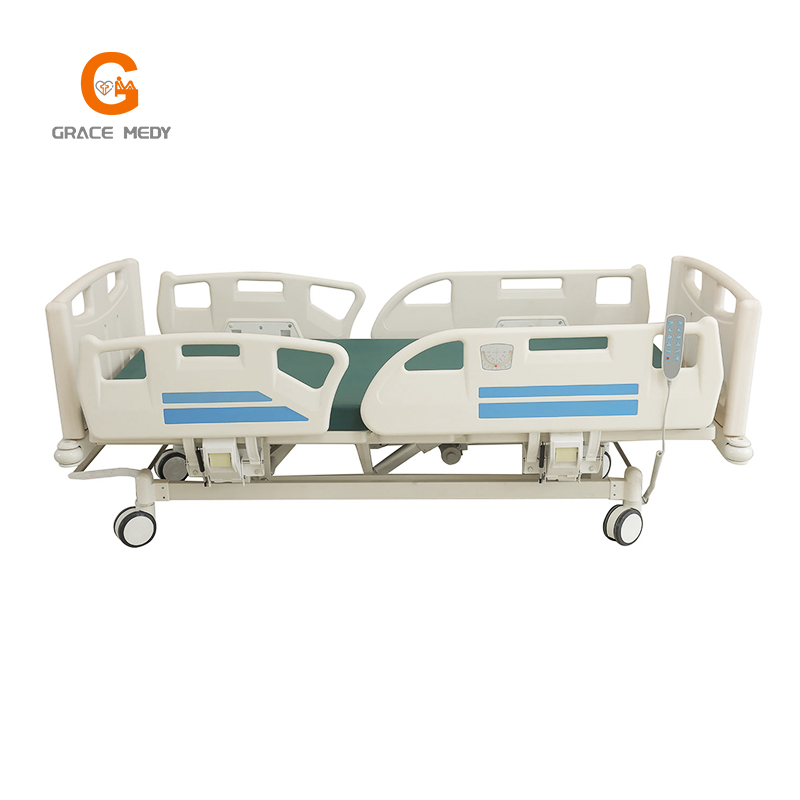

KT5001 5 Function Electric ICU Patient Hospital Bed

KT5001 5 Function Electric ICU Patient Hospital Bed Featured Image
  • KT5001 5 Function Electric ICU Patient Hospital Bed
  • KT5001 5 Function Electric ICU Patient Hospital Bed
  • KT5001 5 Function Electric ICU Patient Hospital Bed
  • KT5001 5 Function Electric ICU Patient Hospital Bed
  • KT5001 5 Function Electric ICU Patient Hospital Bed
  • KT5001 5 Function Electric ICU Patient Hospital Bed

KT5001 5 Function Electric ICU Patient Hospital Bed

1. Specifications and dimensions: length: 2200mm, width: 900mm, height: 430-670mm. (±50mm)

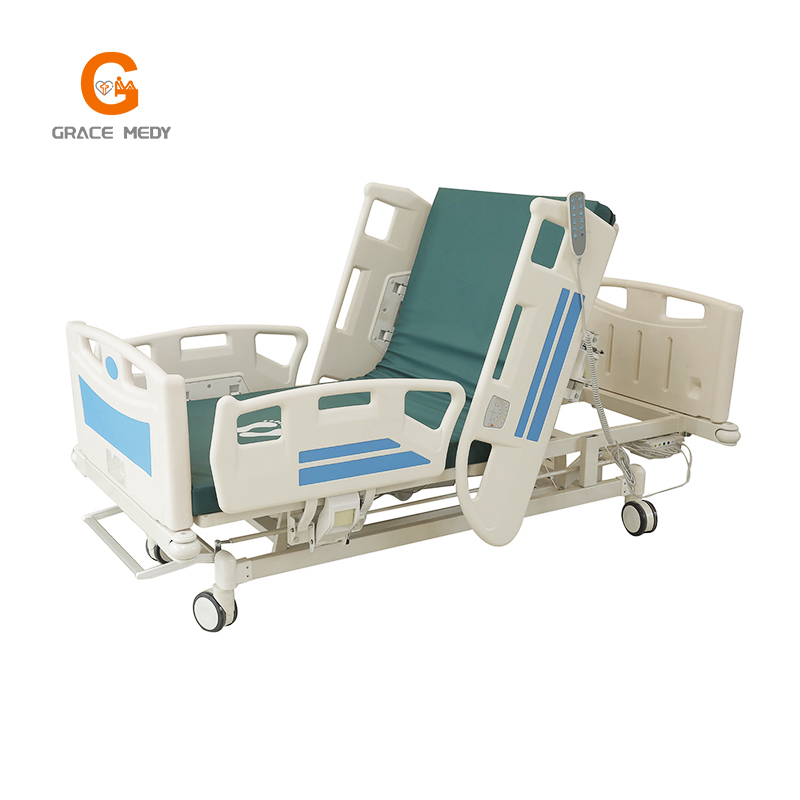

The back lift angle is 0-70°, the leg lift angle is 0-35°, the overall lift height is 430-670mm, and the front and rear tilt angles are 0-12°
2. The bed panel is stamped and formed by high-quality cold-rolled steel plate with a thickness of 1.2mm. It has a beautiful appearance and air holes. The surface is electrostatically sprayed, smooth and clean, and non-toxic.
3. The bed frame is made of 30mm×60mm×1.2mm rectangular tube.
4. Equipped with safe voltage linear motor, stable and reliable performance, no noise, long service life. This product has a hand-held handle operation, easy to use.
5. The bedside and tailboards are integrally blow-molded with imported ABS material, with a smooth surface; the switch is located on the outside, which can be easily loaded and unloaded, and can be inserted into the bedside card.
6. The whole bed is electrostatically sprayed after multiple surface treatments, so that it has a more perfect appearance, strong chemical corrosion resistance and electrical insulation, and the sprayed plastic material is environmentally friendly and non-toxic.
7. ABS four-leaf guardrail, pneumatic spring damping up and down, follow-up design, effectively protects the safety of patients, and can be hidden under the bed when not in use. It can be lifted up and down, and there is a pneumatic deceleration device in the process of descending, which prevents personnel from being hurt by too fast speed during the process of descending. When contracting, it is slightly higher than the bed surface, which can prevent the mattress from shifting.
8. The wheels adopt domestic well-known brand casters, equipped with advanced central control braking system, double wheel handle design, one foot brake and four wheel brakes, stable and reliable, equipped with universal casters, one person can easily operate.


Product Detail

Product Tags

Our Advantages

1.Original Manufacturer, the producing workshop is more than 2000 Square Meters
2.Strict Material Inspection & Quality Controlling
(1).IQC:(Incoming Quality Control)
(2).PQC:(Process Quality Control)
(3).FQC:(Final Quality Control)
(4).OQC:(Outgoing Quality Control)
3.ISO9001, ISO13485(SGS) Quality Management System
4.More than 13 years experiencrs’ quantity
5.We have our own engineers,technology talents and quality test department,so we receive customize
6.SGS,ISO and CE Certificates
7. Products are exported to more than 120 countries

Detailed Photos
5 Function Movement Basic Central Locking Medi Electric Medical ICU Patient Hospital Bed Series Bangladesh
5 Function Movement Basic Central Locking Medi Electric Medical ICU Patient Hospital Bed Series Bangladesh
5 Function Movement Basic Central Locking Medi Electric Medical ICU Patient Hospital Bed Series Bangladesh

5 Function Movement Basic Central Locking Medi Electric Medical ICU Patient Hospital Bed Series Bangladesh

Company Profile



5 Function Movement Basic Central Locking Medi Electric Medical ICU Patient Hospital Bed Series BangladeshWe are a professional manufacturer and designer of hospital beds and relate medical products. ”Forward Health” is our LOGO, we hope that our products can provide nursing functions for patients, let them restore health asap, and make nursing work easier.

Our company from the beginning to now, We insist to supply first-class products, first-class quality, and first-class service, we think this is the solid foundation for long-term cooperation.

Our factory locate in Hengshui City, Hebei Province of China. Hebei is Steel production area, so we have cost advantage. And Hebei is a populous province, so labor costs are much lower than those in the south of China. We are near Tianjian port, the transport cost is lower. These reasons support us to provide customers with more favorable prices

5 Function Movement Basic Central Locking Medi Electric Medical ICU Patient Hospital Bed Series Bangladesh
Since 2018, we cooperate with the Korean factory. Every year, we  conduct some technical exchanges and guidance to further improve the technical process and product quality.  Our reliable product quality assurance will help you to expand your market fast.

We have professional R&D team,  they continuously introduces new styles, which are the most attractive to customers every time in the exhibition.  Moreover, our R&D team give professional suggestion and improvement solution in the customized products, the customers benefit from these solution and avoids market risks, so they have established a long-term cooperation with us.  We also can match the design according to your target price or need, which is more conducive to you to develop your market.

5 Function Movement Basic Central Locking Medi Electric Medical ICU Patient Hospital Bed Series Bangladesh
Our packing method is divided into paper carton/paper carton+woven bag/wooden case three kinds. The carton and bag are suitable for goods in the factory loading, because we will put the goods in the container by ourselves, it will be safety and we can avoid collision when loading the container.
But sometimes the other goods through domestic transportation, in order to better protect the them, we usually use wooden cases according to customer requirment.

5 Function Movement Basic Central Locking Medi Electric Medical ICU Patient Hospital Bed Series Bangladesh

After Sales Service
1 Factory Video inspection
2 Goods Video inspection
3 After-sales warranty:
–One year warranty
–Five-year maintenance
–Ten years of spare parts supply
4 Design brochure for customers
5 Provide installation video
6 Provide operation video
7 Installation Manual
8 Design label and paste on the packages
9 Accept customized orders
FAQ

Q:Are you a factory?
A:Yes, We are a professional manufacturer and designer of hospital bed air mattress and relate medical products. We have our own R&D team, We established our first factory in 2009,after 13 years development, we have build up a new modern factory,we also build our abroad warehouse in Russia and Korea.

Q: How do you guarantee quality ?
A:In order to ensure the quality of the products, our factory has a complete quality control system and under ISO13485:
1.IQC:(Incoming Quality Control)
2.PQC:(Process Quality Control)
3.FQC:(Final Quality Control)
4.OQC:(Outgoing Quality Control)

Q: Do you accept custom products ?
A: Our R&D team will continue to introduce new styles, these styles are the most attractive to customers in the exhibition every time. Moreover, the R&D team can quickly draw detailed design drawings when receiving customized styles from customers, cooperate with production to produce samples, and propose improvement plans many times in the process, which benefits customers and avoids market risks. Therefore, customers have already contacted us. A long-term cooperative relationship has been reached.

Q:What additional sales services do you provide?
A:We provide you with a full range of sales plans, sales posters, and sales brochures according to your needs. If you have any questions, you can communicate with us in time. We will reply within 24 hours and propose solutions within 48 hours.

Q: What’s your warranty policy after-sales service?
A:Our guarantee is one-year warranty, five-year maintenance, ten-year spare parts supply. In addition, we provide you with a full range of after-sales service from purchase to use. We will introduce you to the detailed functions of the product when you buy it,and after delivery Send you a shipping notice so that you can arrange a time for picking up the goods in advance; after getting the goods, we will send you a satisfaction survey form so that you can give us suggestions
