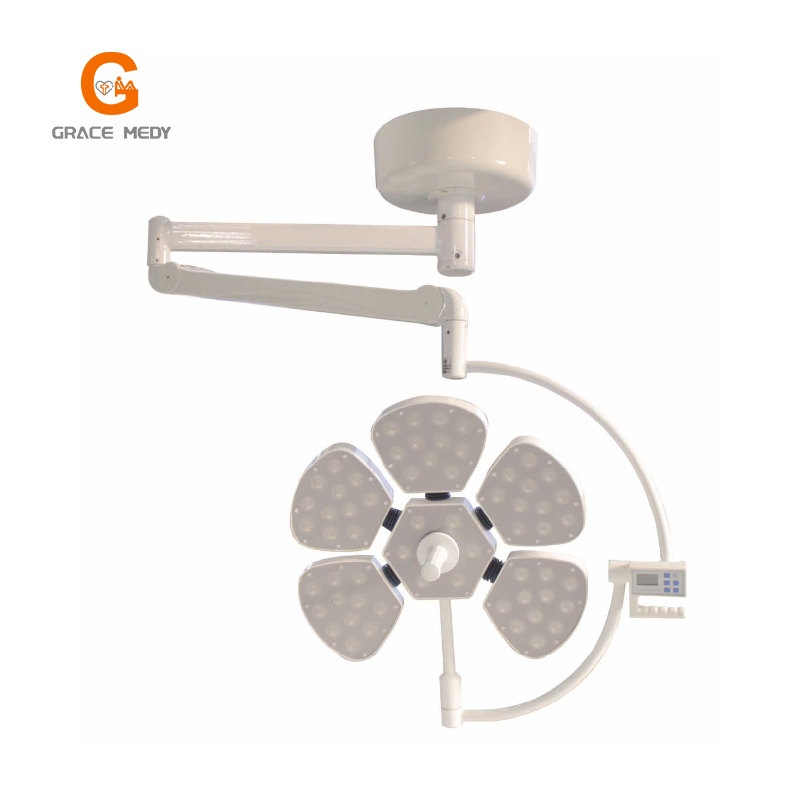

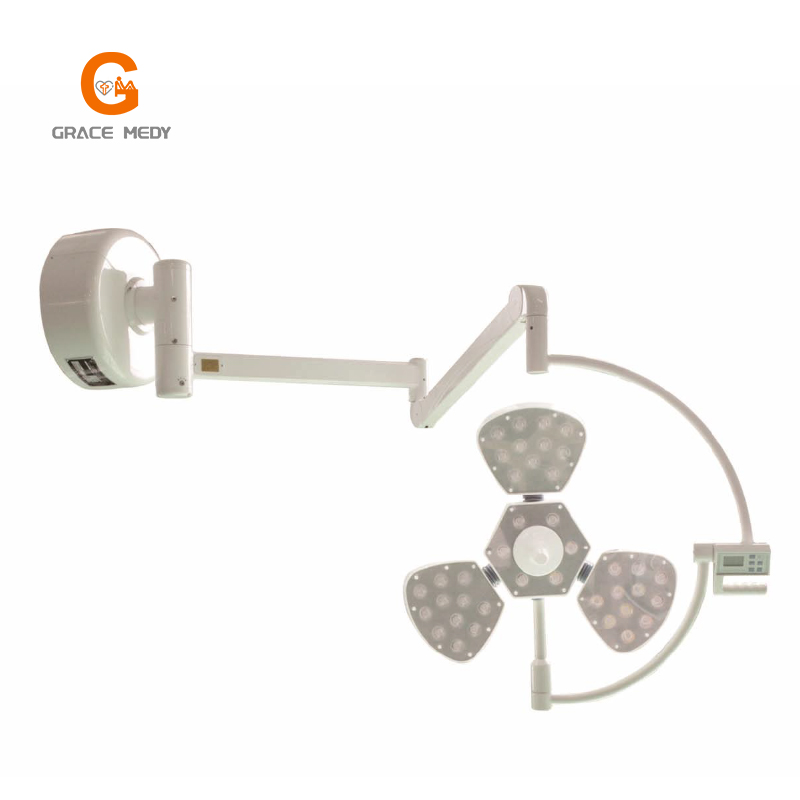

LED5+3 flower operation light 61/39 lamp beads

LED5+3 flower operation light 61/39 lamp beads

★ Using a new type of LED cold light source, the lifespan can reach more than 65,000 hours, and there is no need to replace the bulb. It is superior to traditional halogen lamps and can meet the requirements of energy saving and environmental protection.
★Using a new type of LED cold light source, there is no ultraviolet and infrared light in the spectrum, neither heat nor radiation, the temperature rise of the doctor’s head and wound area is less than or equal to 1℃, and there is almost no temperature rise.
★The fully enclosed and streamlined lamp head design conforms to the design principle of aerodynamics, completely eliminates the flow dead angle in the purified air, meets the high standard laminar flow requirements of modern operating rooms, and is beneficial to the aseptic requirements of operating rooms.
★The lighting brightness can be changed according to the hospital’s needs for different surgical lighting. A new type of LED touch LCD control panel can be selected to realize the switch of lighting and the adjustment of contrast, color temperature and brightness mode.
★The LED petal lamp head is petal-shaped and has a special shape. The overall design makes the light beam gather into a high-brightness uniform beam, thereby ensuring a soft and uniform deep-focusing effect and ensuring the high-brightness and high-depth lighting requirements for surgery.
★The color temperature of the SHD-LED petal 3+5 surgical shadowless lamp can be adjusted from 3000K to 6700K in six grades, which makes the diagnosis more accurate, and does not cause the eyestrain of medical staff due to long work.
★Lightweight and high-quality balance arm suspension system (optional imported arm), six sets of universal joint linkage, 360-degree all-round design, can meet the needs of various heights, angles and postures during surgery, easy to move and accurate positioning.
★With manual focusing technology, the operation is simple and light, overcomes the technical difficulties in focusing of the LED surgical shadowless lamp, and realizes the stepless focusing function; the detachable handle can be used for high temperature sterilization (≤160℃).
★The light beam emitted by the LED petal light source is focused in the surgical area through a specially designed high-performance lens to meet the light field required for surgical lighting; the maximum illuminance can reach 140000LUX. The brightness of the LEDs is digitally controlled steplessly, and the illumination of each lamp head can be adjusted separately.
★Each LED petal light module contains 11 LED lamp beads, each module contains an independent electronic control system, the lamp head has a very low failure rate, and the failure of a single LED will not affect the function of the lamp head.
★The bigger advantage of LED is that it produces less heat because it emits almost no infrared or ultraviolet.
★Installation height of shadowless lamp: 2.7-3 meters, the rotating arm (big arm) rotates 360°, the control space radius is 2.2 meters, the working radius is 600-1800mm, the balancer (S crank arm) rotates 560° around the rotating arm (big arm) ( The inlet arm is 360°) uplift 400mm and pull down ≥400mm (balancer up and down ≥800mm), the elbow rotates 560° around the balancer, and the lamp head rotates 340° around the elbow.


Product Detail

Product Tags

Product Description:
Warranty
1 years
After-sale Service
Online technical support
Material
Aviation aluminum
Shelf Life
60000 hours
Quality Certification
CE
Instrument classification
Class II
Safety standard
ISO13485
Illuminance (Lux)
60000-160000/140000Lux
Number of bulbs
61/39pieces
Lamp bead average life
≥60000h
Color temperature (adjustable)
3000K~6700K
Display index (adjustable)
≥95%
Focus depth
≥800mm
SPOT DIAMETER (mm)
180/170mm
Irradiance (W/m²)
≤550
Dimming
1%-100%
Power
80/65W
The surgeon’s head heats up
<1ºC
Lamp beads
1W/3V
Voltage
AC100-220V 50HZ
Detailed Photos:

60000 Hours Service Life Air Circulation LED Operation Room Flower Surgical Lights60000 Hours Service Life Air Circulation LED Operation Room Flower Surgical Lights60000 Hours Service Life Air Circulation LED Operation Room Flower Surgical Lights

Certifications:

60000 Hours Service Life Air Circulation LED Operation Room Flower Surgical Lights

Company Profile:

60000 Hours Service Life Air Circulation LED Operation Room Flower Surgical LightsWe are a professional manufacturer and designer of hospital furnitures and relate medical products.

We established our first factory in 2009. Starting from the production of simple hospital beds, and in order to better serve our customers, we have established a professional R&D team. focusing on electric ICU beds and home care beds. Our team continuously introduces new styles every year. These new styles are the most attractive to customers every time in the exhibition. Moreover, our R&D team give professional suggestion and improvement solution in the customized products, the customers benefit from these solution and avoids market risks, so they have established a long-term cooperation with us. We also can match the design according to your target price or need, which is more conducive to you to develop your market. After 13 years of development, our comprehensive and intelligent production line allows us to provide you with modern medical and nursing combined products.
We have the CE certificate and passed ISO13485 quality management system certification. ISO13485 is very persuasive in medical goods production field. This certificate is a passport to enter the international market. And these certificates are recognition of our quality. We also provide corresponding certificates and embassy certifications according to your requirements, to make you more competitive in the market.

FAQ:

Q: Are you a factory?
A: Yes, we are a professional manufacturer and designer of hospital beds and related medical products. We have our own R&D team.

Q: How do you guarantee the quality?
A: In order to ensure product quality, our factory has a complete quality control system, in line with ISO13485:
1.IQC: (Incoming Quality Control) material is the basis of quality.
2.PQC: (Process Quality Control) PQC is a designated inspection or acceptance.
3.FQC: (Final Quality Control) Products should be tested before completion.
4.OQC: (Factory Quality Control) It is also our pre-shipment inspection system.
Q: Do you accept customized products?
A: We accept customization. The R&D team can quickly draw detailed design drawings, cooperate with production and produce samples,and propose improvement plans many times in the process to benefit customers and avoid market risks.
Q: What additional sales services do you offer?
A: We provide you with a full range of sales plans, sales posters, sales brochures according to your needs. If you have any
questions, you can communicate with us in time.
Q: What is your warranty policy after-sales service?
A: Our guarantee is one-year warranty, five-year maintenance, and ten-year spare parts supply. In addition, we provide you with a full range of after-sales services from purchase to use. If there is a problem, we will reply within 24 hours and propose a solution within 48 hours.
