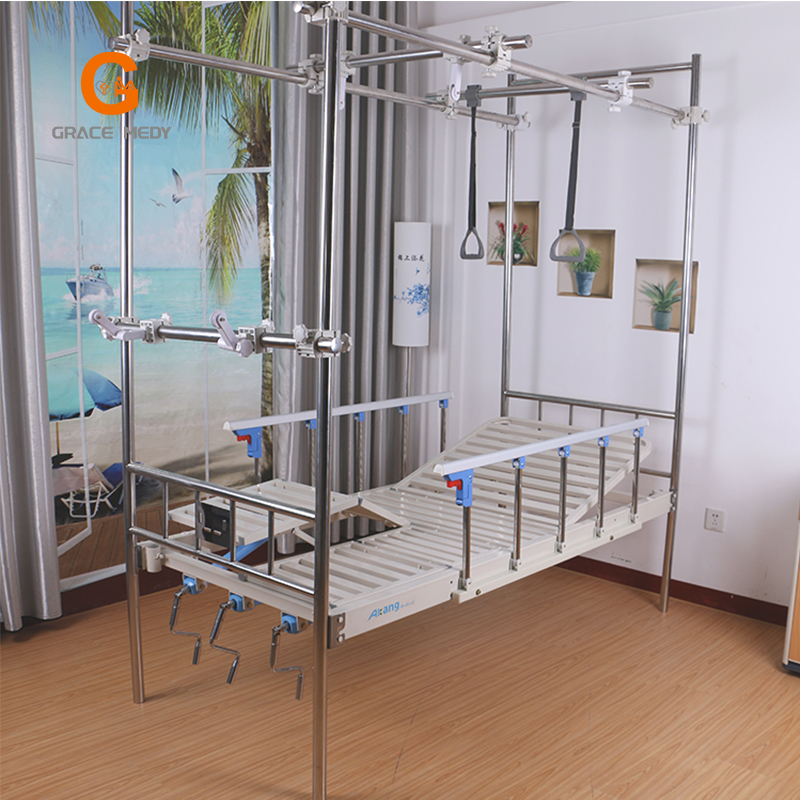

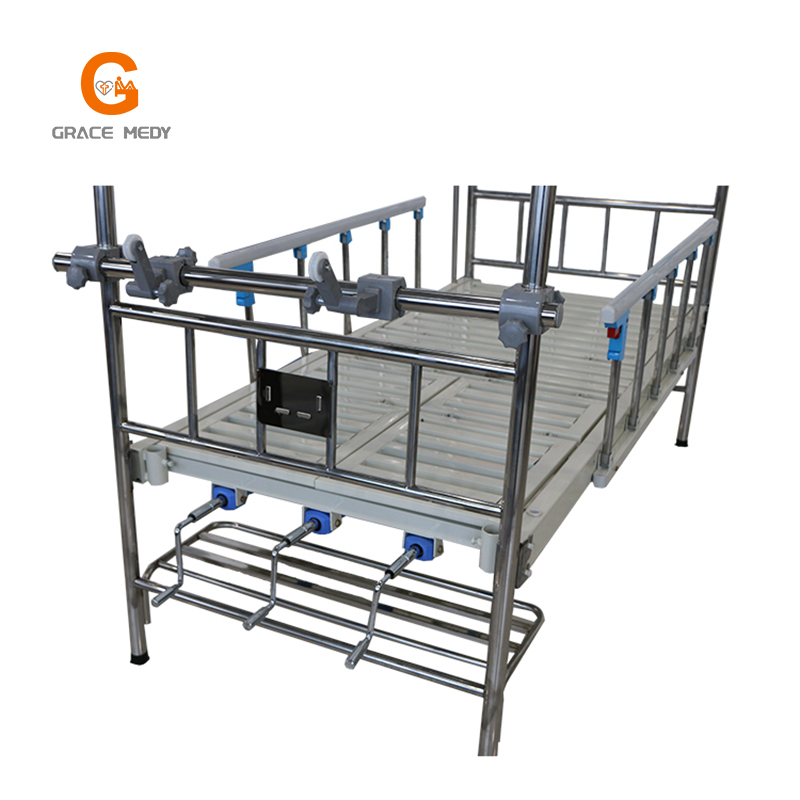

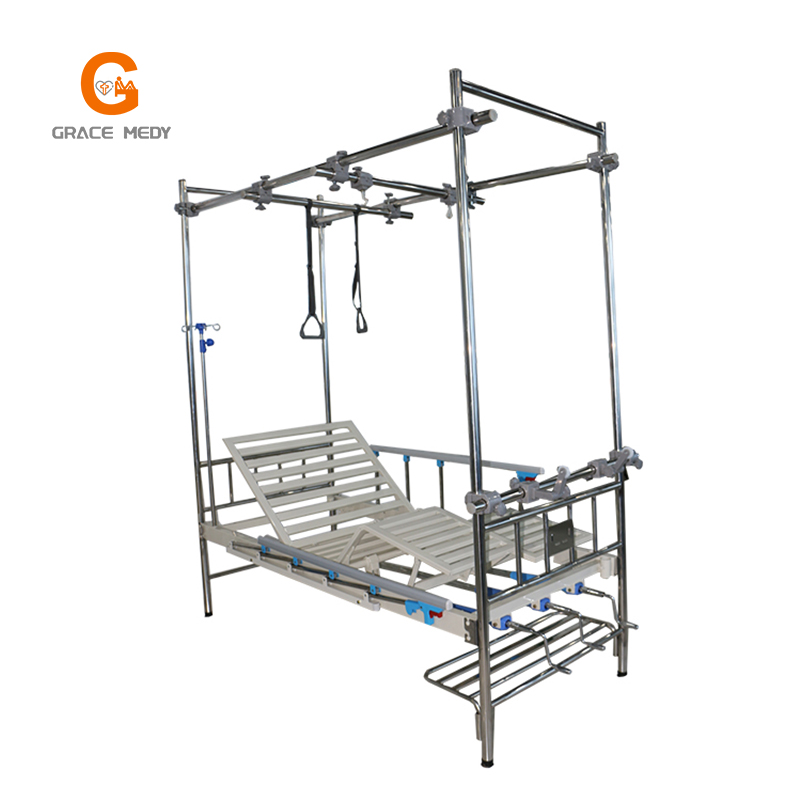

Multi function 3 crank traction hospital patient bed B07-1

Multi function 3 crank traction hospital patient bed B07-1

This product is a new type of traction bed which adopts manual (hand) mechanical transmission to implement traction. Our product has the function of lifting back and separating legs.


Product Detail

Product Tags

This product is a new type of traction bed which adopts manual (hand) mechanical transmission to implement traction. Our product has the function of lifting back and separating legs. A handle on a shelf above it can help patients with rehabilitation activities.Traction bed is a kind of new apparatus which adopts mechanical transmission to carry out traction. The application of human physiology and mechanical physics and mechanics science combined characteristics, widely used in all kinds of acute and chronic injuries caused by lumbar disc herniation, low back pain, radiation leg and foot numbness, walking weakness caused by leg and foot muscle atrophy, as well as traumatic cervical fracture, dislocation, dislocation and other symptoms; It can also be applied to cervical vertebra dizziness, headache, tinnitus, abnormal blood pressure and other clinical symptoms.

Product Specifications
Name  ABS three-function Hanging Leg orthopedic bed
Model  B07-1
Full length  2090mm
Full width  900mm
Height of the bed surface  500mm
ID length  1950mm
The back lifting angle  0-75°
The leg lifting angle  0-45°
Load bearing  ≥250kg
ID width  900mm
Head of bed、end of bed  ABS and stainless steel compound
Constitution of bed surface  20 x 40 mm square pipe bed surface,with a complete set of aluminum alloy gantry traction frame
Guardrail  Stainless steel column plus five column(or six) aluminum guardrail
Casters  125mm luxurious silent casters

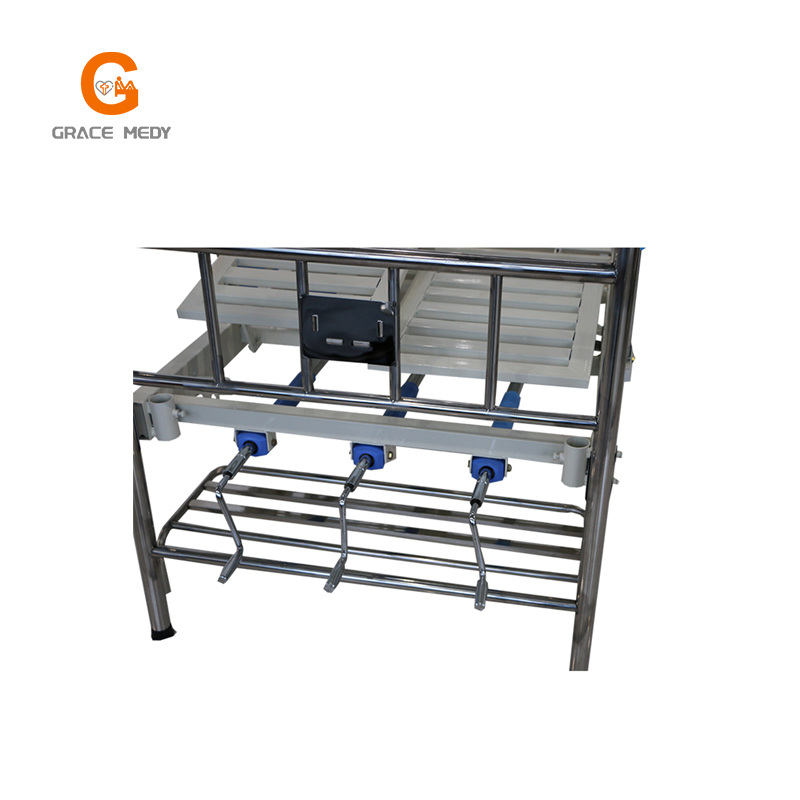

Cranks  Ordinary steel folding hand crank
Optional  IV pole, drainage hook, shelf
Load bearing  Load bearing≥250kg
Overall weight  /
Package Size  /
