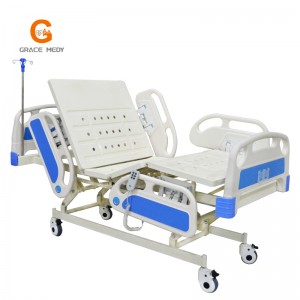

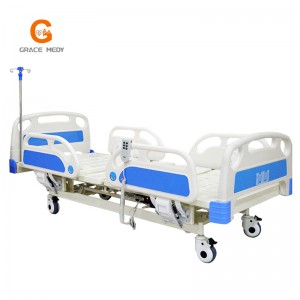

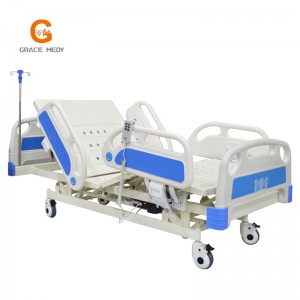

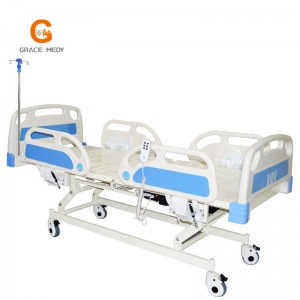

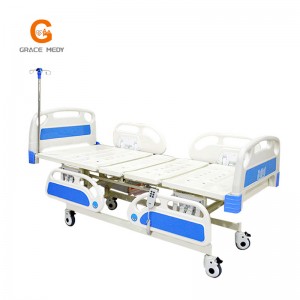

A03-2E Electric three function hospital bed
|
Headboard/Footboard: |
Detachable ABS bed headboard |
|
Gardrails |
ABS damping lifting guardrail with angle display. |
|
Bed surface |
High quality large steel plate punching bed frame L1950mm x W900mm |
|
Brake system |
125mm silent casters with brake, |
|
Motors |
L&K brand motors or Chinese famous brand |
|
Power supply |
AC220V ± 22V 50HZ ± 1HZ |
|
Back lifting angle |
0-75° |
|
Leg lifting angle |
0-45° |
|
Max load weight |
≤250kgs |
|
Full Length |
2090mm |
|
Full width |
1040mm |
|
Height of the bed surface |
440mm ~ 760mm |
|
Options |
Mattress, IV pole, Drainage bag hook, Battery |
|
HS CODE |
940290 |
Electric hospital bed
A03-2E
Length: 2090mm (bed frame 1950mm), Width: 960mm (bed frame 900mm)
Height: 420mm to 680mm (bed surface to floor, exclude mattress thickness),
Back rest lifting angle 0-75°
Leg rest lifting angle 0-45°
1. Bed Headboard
2. Bed Footboard
3. Bed-frame
4. Back panel
5. Leg panel
6. Guardrails (aluminum alloy material or ABS material)
7. Control handle
8. Casters
It is suitable for patient nursing and recuperation.
1. Casters of bed
Brake the casters and then install the casters into the legs (as shown in figure 1)
2. Bed headboard and footboard
Install the groove of headboard and footboard with Figure 1 Figure 2
the bed frame, and locked with the hook of headboard and footboard (as shown in figure 2)
3. Guardrails
Install the guardrail, fix the screws through the holes of guardrails and bed frame, fasten with nuts.
Control Handle
Press button ▲, the bed backrest raise, the max angle 75°±5°
Press button ▼, the bed backrest drop untill resume flat
Press button ▲, the overall raise, the max height of bed surface is 680cm
Press button ▼, the overall drop, the lowest height of bed surface is 420cm
Press button ▲, the bed legrest raise, the max angle 45°±5°
Press button ▼, the bed legrest drop untill resume flat
Guardrails: Push the handle of the guardrail and lift the guardrail up untill autolock.
Push the handle of the guardrail and let the guardrail down.
1. Make sure the power cord is firmly connected. Ensure reliable connection of controllers.
2. The person cannot stand to jump on the bed. When the patient sits on the back board or stand on the bed, pls don't move the bed.
3. When using the guardrails and infusion stand, lock firmly.
4. In unattended situations, the bed should be kept at the lowest height to reduce the risk of injury if the patient falls from the bed while in or out of bed.
5. Casters should be effectively locked
6. If the need to move the bed, firstly, removed the power plug, winded the power controller wire, and lifted the guardrails, to avoid the patient in the process of moving fall and injury. Then release the casters brake, at least two people operate the moving, so as not to lose control of the direction in the moving process, resulting in damage to the structural parts, and endanger the health of the patients.
7. Horizontal moving is not allowed to avoid damage to the guardrail.
8. Don't move the bed on uneven road, in case of caster damage.
9. Do not press more than two buttons at the same time to operate the electric medical bed, so as not to endanger the safety of patients
10. The working load is 120kg, the max load weight is 250kgs.
1. Check that the headboard and footboard were fasten tightly with bed frame.
2. Check the casters regularly. If they are not tight, please fasten them again.
3. Be sure to turn off the power supply during cleaning, disinfection, and maintenance.
4. Contact with water will lead to power plug failure, or even electric shock, please use a dry and soft cloth to wipe
5. Exposed metal parts will rust when exposed to water. Wipe with a dry and soft cloth.
6. Please wipe the plastic, mattress and other coating parts with a dry and soft cloth
7. Besmirch and oily be soiled, use the wring dry cloth that dip in diluent of neutral detergent to wipe.
8. Do not use banana oil, gasoline, kerosene and other volatile solvents and abrasive wax, sponge, brush etc.
9. In case of machine failure, please immediately cut off the power supply, and contact the dealer or manufacturer.
10. Non-professional maintenance personnel do not repair, modify, to avoid danger.
The packaged products can be transported by general ways of transport. During the transportation, please pay attention to preventing sunshine, rain and snow. Avoid transportation with toxic, harmful or corrosive substances.
Packaged products should be placed in a dry, well-ventilated room without corrosive materials or heat source.
